Details

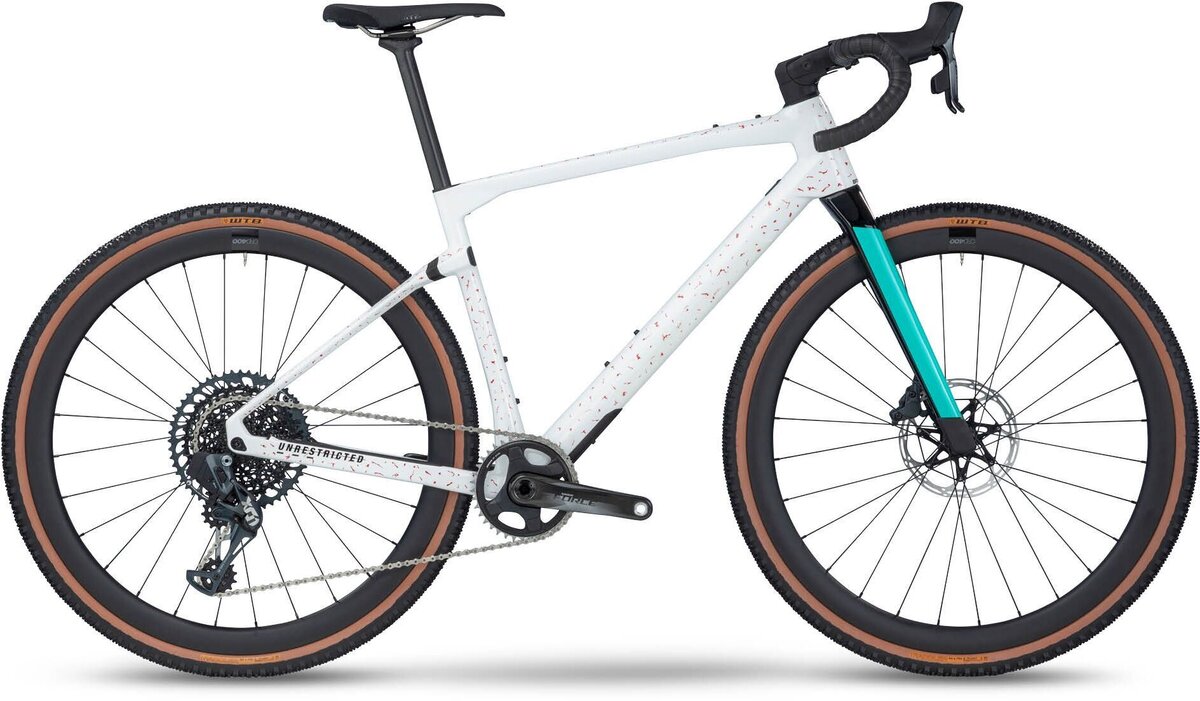

There’s nothing grizzled about the sleek looks of our lightest, most integrated URS, a bike with all the performance a dedicated gravel rider needs. Its gravel-conquering Premium Carbon frameset boasts ICS and MTT technologies, plus epic practicality from multiple mounts, Gravel+ geometry and large tire clearance. The SRAM Force eTap AXS 12-speed with an ultra-wide SRAM Eagle cassette creates a useful ‘mullet’ drivetrain, while 40mm CRD-400 Carbon, tubeless-ready wheels supply the speed for this gravel bike.

Frameset

URS 01 premium carbon frame with Micro Travel Technology, Tuned Compliance Concept Gravel
MTT suspension fork, 25 mm travel, premium carbon blades
URS 01 premium carbon D-shape seatpost

Technical Details

Stealth cable management, including hub dynamo and dropper post
D-Shape seatpost with D-fender mount
Integrated seat clamp
Easy access Di2 junction box integrated in downtube
Top tube mount
3rd water bottle mount on downtube
Hidden fender mounts
Rack mounts
ASTM level 2

Sizes

S, M, L, XL

Frame Weight**
1050 g

Fork Weight**
550 g

Seatpost Weight**
160 g

Cockpit

ICS MTT x Redshift Suspension Stem; Easton AX Bars

ICS MTT stem with internal cable routing and easy fit adjustment; Easton AX bars
Garmin/GoPro integrated computer mount (Wahoo-ready with GoPro-compatible mounts)
Handlebar reach/drop: 80/120 mm (Easton AX)
ICS MTT stem angle: 0°
330 g (stem)
URS 01 is compatible with any ICS cockpit configuration using the dedicated topcones (ICS Carbon, ICS CArbon Aero, ICS Aero, ICS2, ICS01, ICS01 0 Degrees, ICS MTT Stem).*

Compatibility

Frame, Fork and Seatpost

ICS specific fork with tapered steerer, flat mount
Compatible with 1x electronic and mechanical groupsets
Max chainring: 48T
PF86 bottom bracket
D-Shape seatpost with D-fender mount
Front derailleur: 1x specific frame
Replaceable rear derailleur hanger
Brakes

Front brake: flat mount, 160 mm rotors minimum
Rear brake: flat mount, 160 mm rotors minimum
Wheels and Axles

Designed for 40 mm, maximum tire clearance 42 mm (actual measured width)
Front thru-axle: 12x100 mm (diameter/frame spacing)
Rear: thru-axle: 12x142 mm (diameter/frame spacing)
